Description
Manufacturer’s Part Number: PA-80V/U
Part Type: VHF/UHF Dual Band Amplifiers
Product Line: Toptek Communications PA-80V/U Power Amplifiers
DXE Part Number:TEK-PA-80V/U
Amplifier Type: Solid state
Operation Mode : FM.
Frequency Range: VHF 138-174 MHz, UHF 430-470 MHz.
RF Output Maximum Power: VHF 85 watts, UHF 85 watts.
RF Input for Maximum Output: 5 watts
Built-In Preamplifier: Yes
Preamplifier Gain: VHF 21 dB, UHF 12 dB.
Noise Figure : under 2.4 dB.
RF Sense Keying : Yes.
Remote Control Connector : None.
DC Supply Voltage : 13.8 Vdc.
DC Supply Current : 13 A.
RF Connector Type : N type female..
Amplifier Width : 4.921 in.
Amplifier Height : 1.969 in.
Amplifier Depth : 8.268 in.
Quantity : Sold individually.
Features

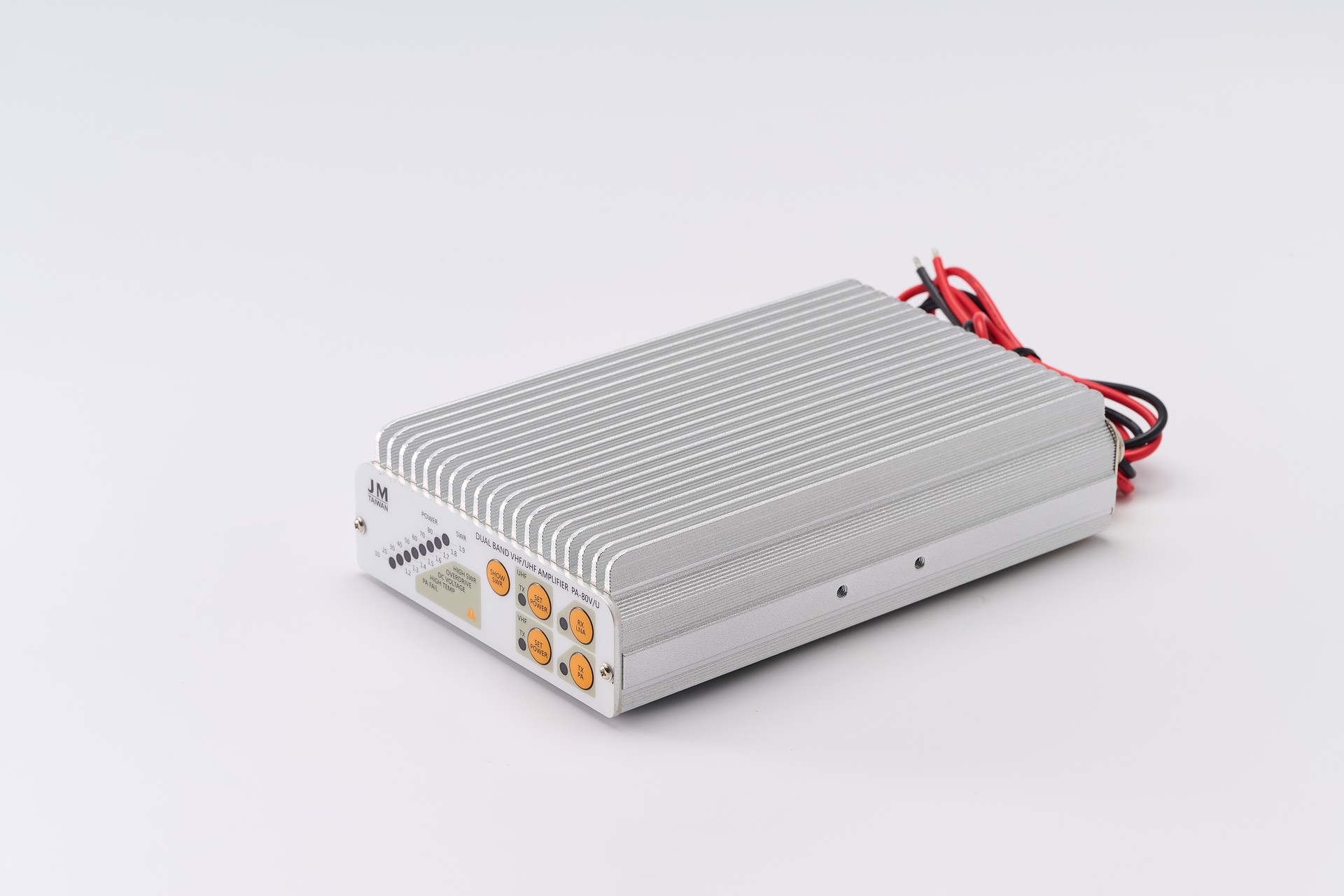

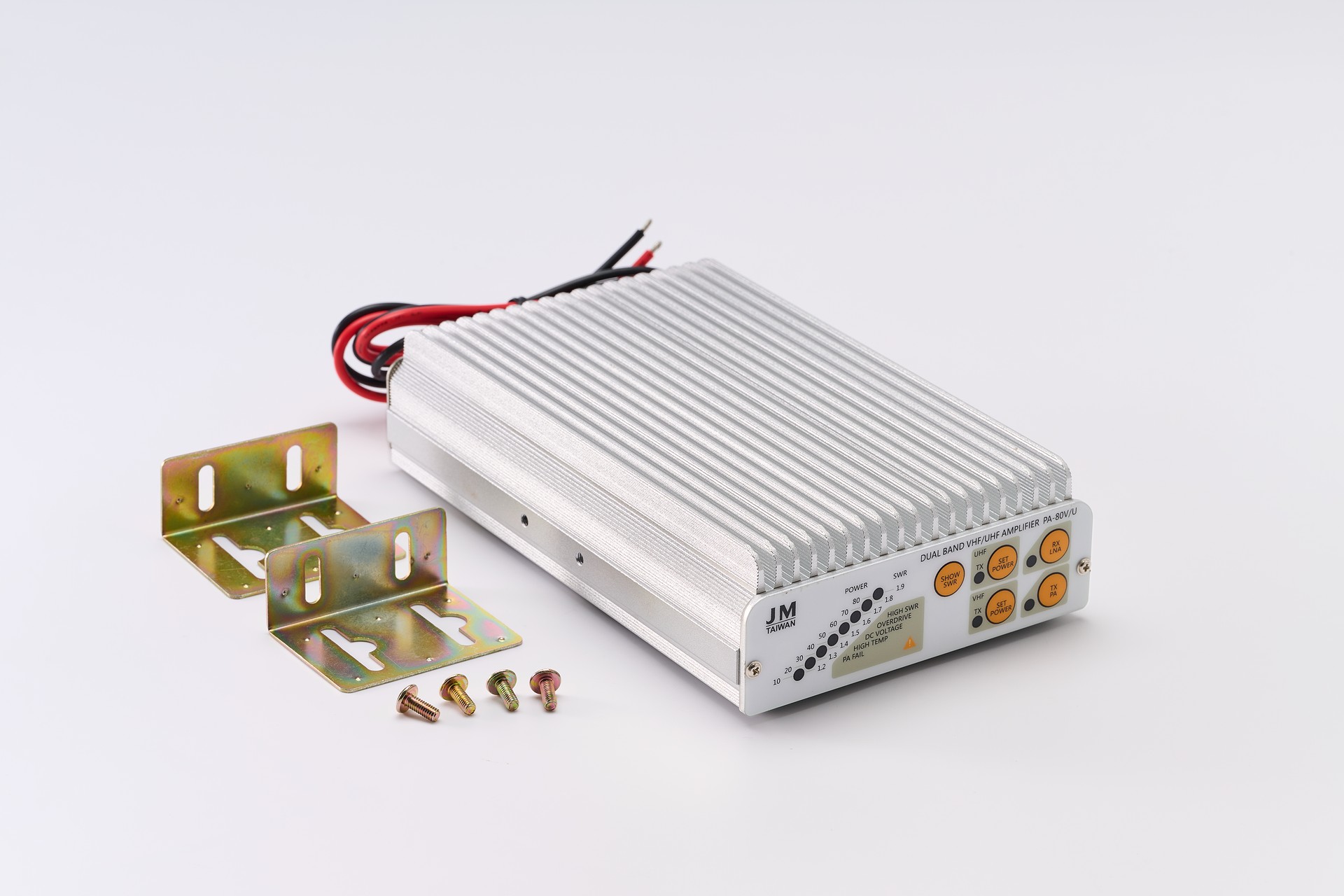

Toptek Communications PA-80V/U Dual Band Power Amplifiers
Toptek Communications PA-80V/U Dual Band Power Amplifiers are efficient and wideband capable.
They offer a nominal output of 80 – 85 watts output with 3 to 5 watts input drive on VHF frequency from 138 to 174 MHz and UHF frequency 430 to 470 MHz.

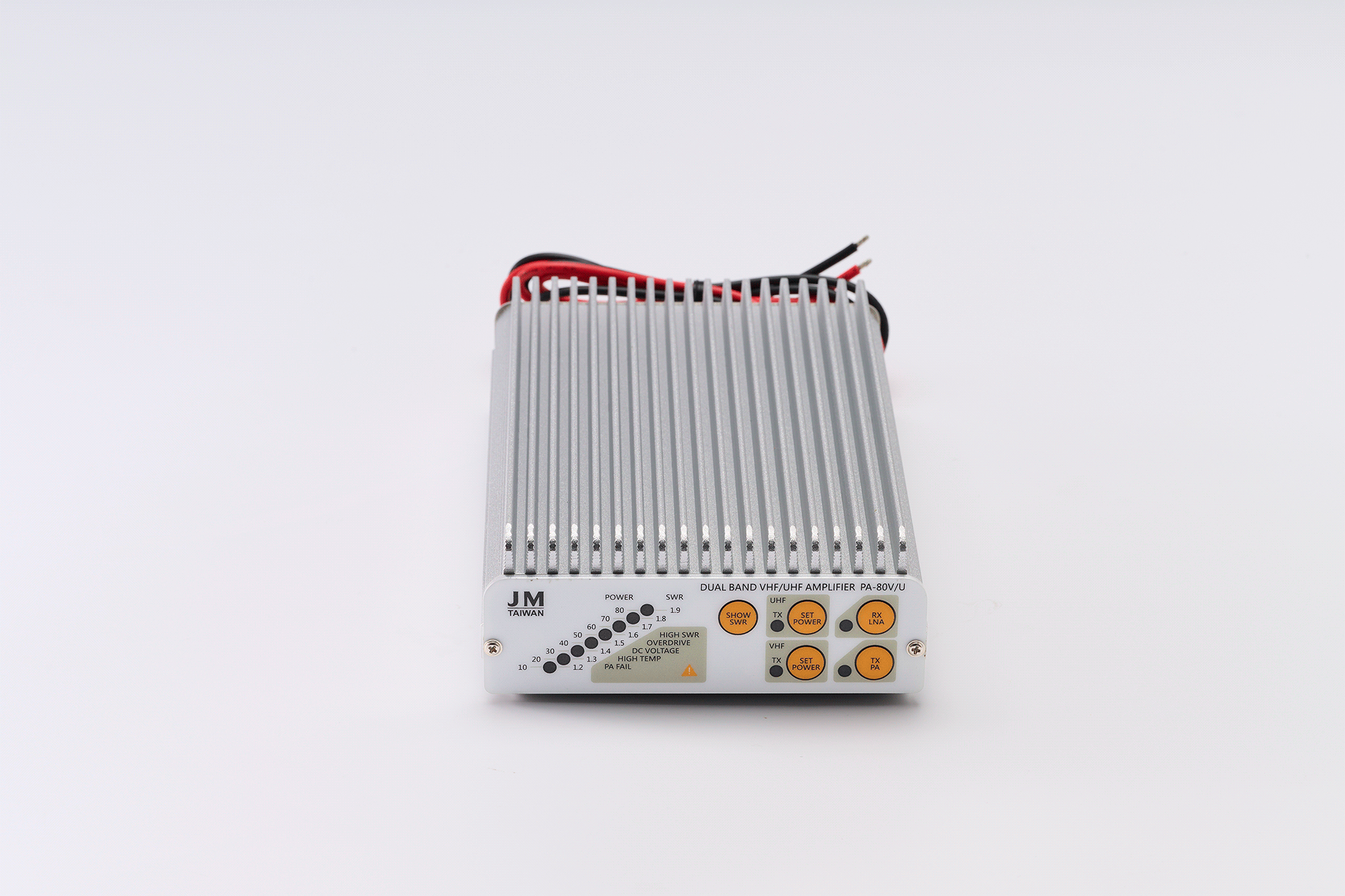

An attractive and useful front panel and heatsink chassis gives these amps everything they need for commercial and Amateur VHF operations.
PA-85V/U Amps have these important features:
– Front panel power and SWR metering.
– Automatic Fault for high SWR over 2:1
– Built-in low-noise receive preamplifier, nominal VHF 20 dB gain, VHF 12 dB gain.
– Automatic peak power metering.
– Settable power output: 10W, 20W, 30W,40W,50W,60W,70W and 80W limits.
– Maximum 10W input, 85W output – Amp off maximum bypass 50W.
– N type female connectors.
– Permanently attached 24 in. (60cm) DC power cable, unterminated (tinned leads).
– DC Input: 13.8 Vdc @ 13A maximum at full output 85W (10.5 to 14.8 Vdc operational range).
– Dimensions (WHD):4.921 x 1.969 x 8.268 in. (125 x 50 x 210mm).
– Weight: 2.5 lbs. (1.15 kg) .
