Description
Amplifier Type : Solid state.
Operating Modes: FM, SSB, CW.
DC Input: 13.8 Vdc @ 13A maximum at full output 95W (10.5 to 14.8 Vdc operational range).
Input Power : 0.7-7 W (max), 5 W for full output power.
Output Power : 85 W (max) , ALC Limited.
Multi-color multi-purpose LEDs display power settings, power output, SWR and error conditions.
Settable FM mode power output: 10W,20W,30W 40W,50W, 60W, 70W,80W limits.
Built-in low-noise receive preamplifier, nominal 15 dB gain.
Multiple protection features: high drive, high SWR, high/low DC voltage, high temperature.
Keying Connector Type : Stereo 1/8 in. female (3.5mm jack).
RF Connector Type : Type N female.
Features

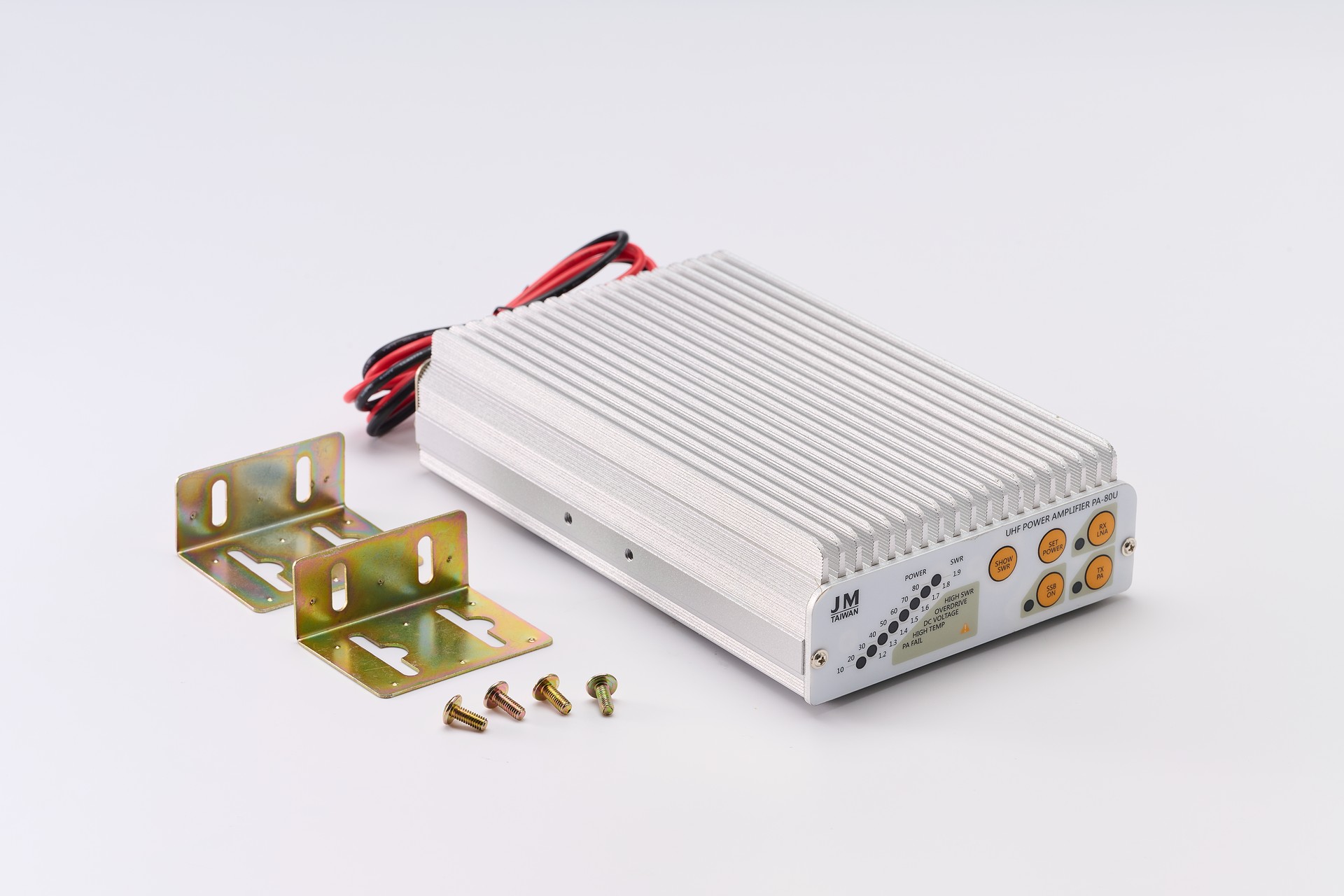

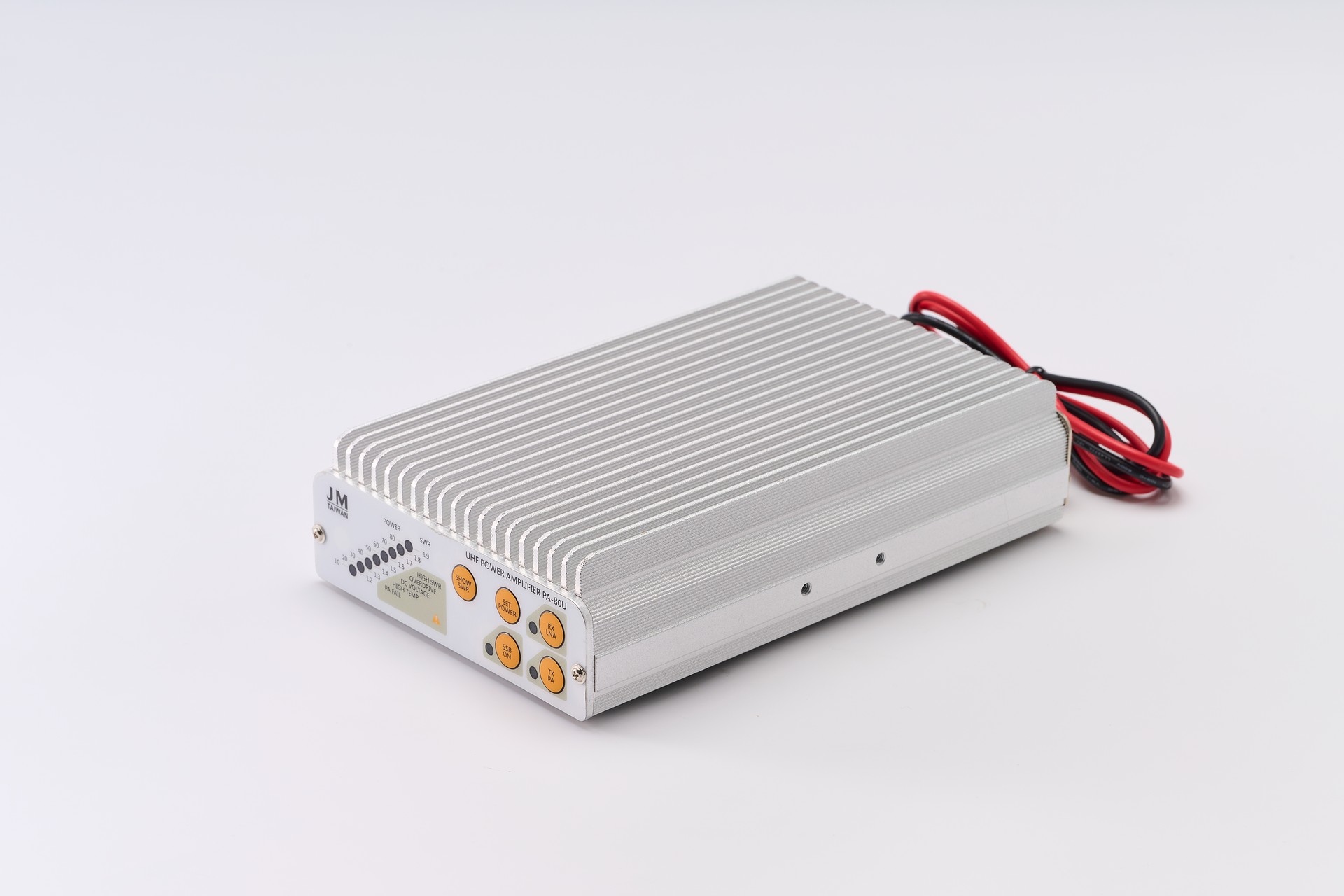

Toptek Communications PA-80U UHF Power Amplifiers
Toptek Communications PA-80U UHF Power Amplifiers are efficient and wideband capable for FM, SSB, CW and Digital modes of operation.
They offer a nominal output of 80 watts output with 3 to 5 watts input drive on any frequency from 430 to 470 MHz.

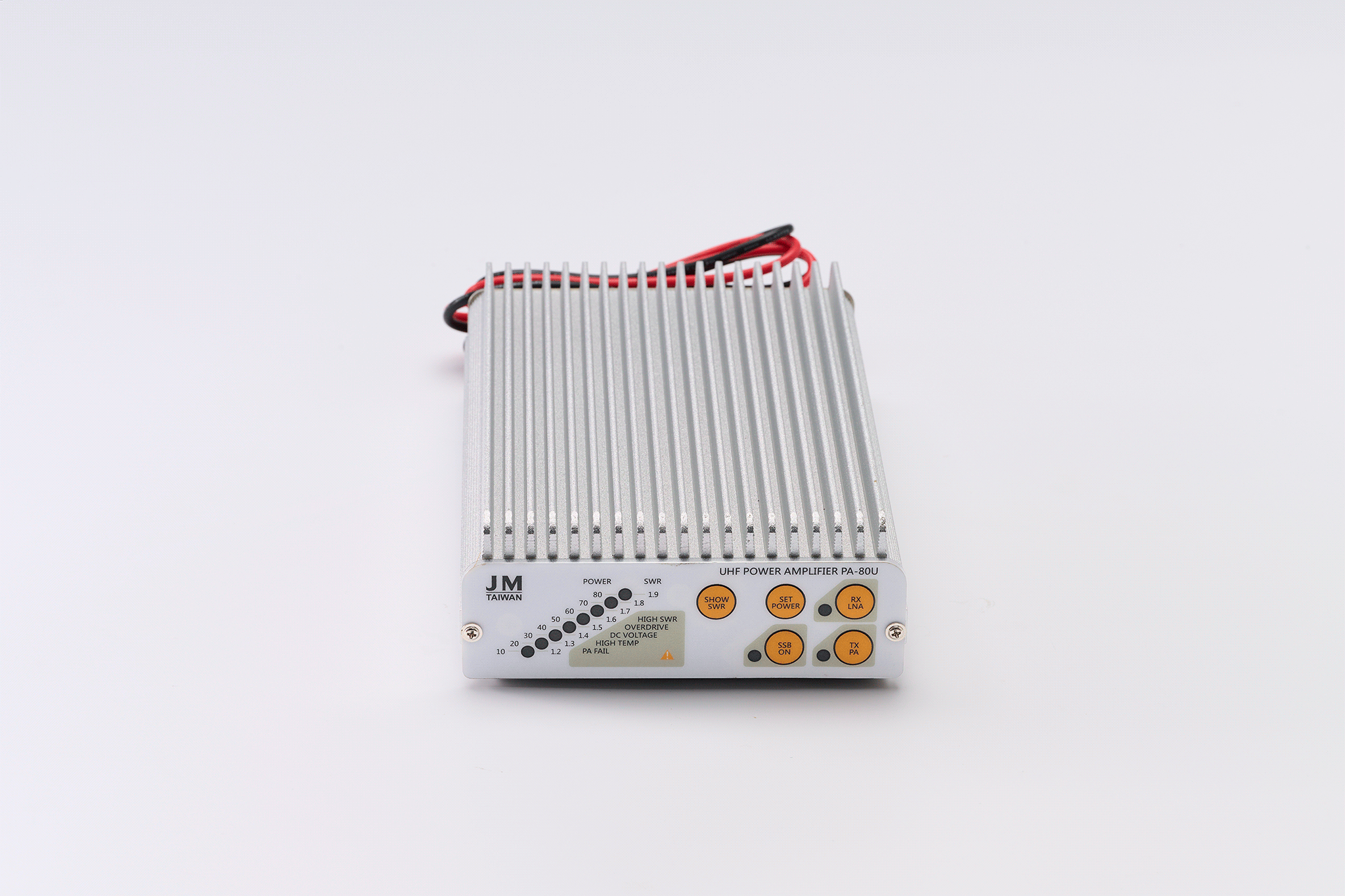

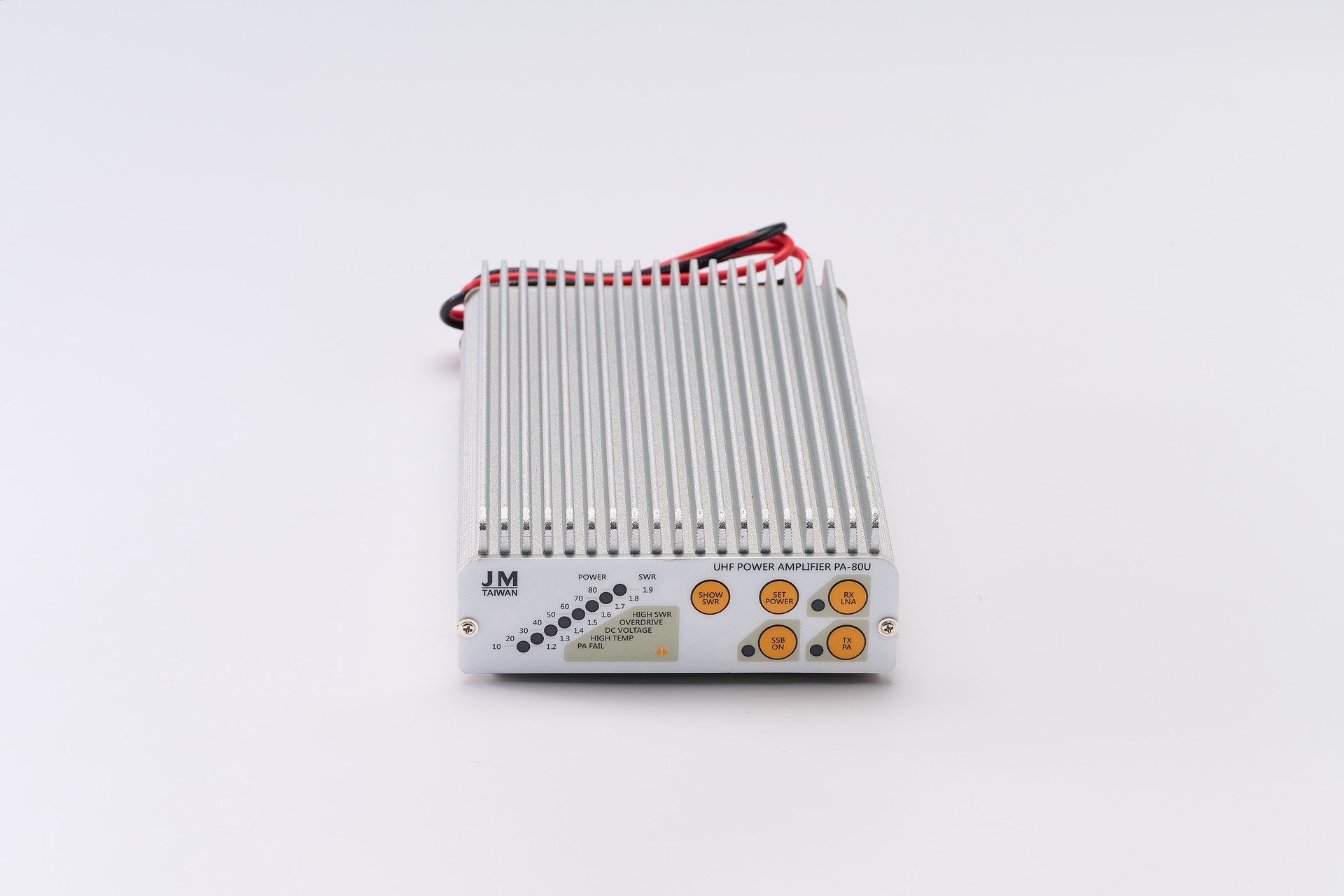

An attractive and useful front panel and heatsink chassis gives these amps everything they need for commercial and Amateur VHF operations.
PA-80V Amps have these important features:
– Front panel power and SWR metering
– Automatic Fault for high SWR over 2:1
– Built-in low-noise receive preamplifier, nominal 20 dB gain
– RF sense keying (no PTT connector)
– Mode switch for automatic SSB delay and peak power metering
– Settable power output: 4 steps from 30W to over 80W limit
– Maximum 5W input, 80W output – Amp off maximum bypass 50W.
– Type N female connectors – RF input and output
– Permanently attached 24 in. (60cm) DC power cable, unterminated (tinned leads)
– DC Input: 13.8 Vdc @ 13A maximum at full output 80W (10.5 to 14.8 Vdc operational range)
– Dimensions (WHD):4.921 x 1.969 x 8.268 in. (125 x 50 x 210mm)
-Weight: 2.5 lbs. (1.15 kg)
