Description
Manufacturer’s Part Number:PA-85V
Part Type:VHF/UHF Amplifiers
Product Line:Toptek Communications PA-85V VHF Power Amplifiers
DXE Part Number:TEK-PA-85V
Amplifier Type:Solid state
Amplifier Band Coverage:2 meters
Frequency Range:137-174 MHz
RF Output Maximum Power:85 watts
RF Input for Maximum Output:5 watts
Built-In Preamplifier:Yes
Preamplifier Gain:20 dB
Noise Figure:under 2.5 dB
RF Sense Keying:Yes
Keying Connector Type:Stereo 1/8 in. female (3.5mm jack)
Remote Control Connector:None
DC Supply Voltage:13.8 Vdc
DC Supply Current:13 A
RF Connector Type:UHF female, SO-239
Amplifier Width:4.921 in.
Amplifier Height:1.969 in.
Amplifier Depth:8.268 in.
Quantity:Sold individually.
Features

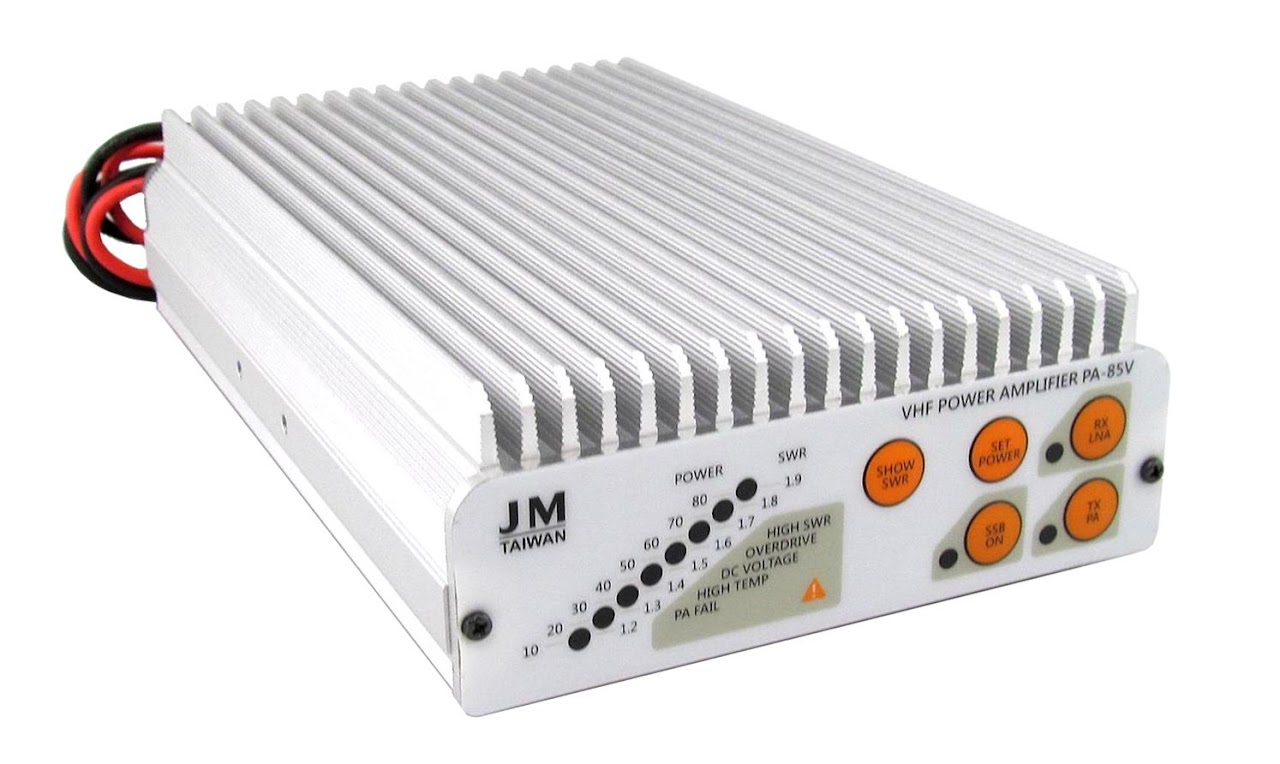

Toptek Communications PA-85V VHF Power Amplifiers are efficient and wideband capable. They offer a nominal output of 80 – 95 watts output with 3 to 5 watts input drive on any frequency from 137 to 174 MHz. An attractive and useful front panel and heatsink chassis gives these amps everything they need for commercial and Amateur VHF operations.
PA-85V Amps have these important features:
– Front panel power and SWR metering
– Automatic Fault for high SWR over 2:1
– Built-in low-noise receive preamplifier, nominal 20 dB gain
– RF sense keying for FM and PTT 3.5mm connector for SSB/CW.
– Mode switch for automatic SSB delay and peak power metering
– Settable FM mode power output: 25W, 45W, 65W and 90W limits
– Maximum 5W input, 95W output – Amp off maximum bypass 50W.
– SO-239 (UHF female) connectors
– Permanently attached 24 in. (60cm) DC power cable, unterminated (tinned leads)
– DC Input: 13.8 Vdc @ 13A maximum at full output 95W (10.5 to 14.8 Vdc operational range)
– Dimensions (WHD):4.921 x 1.969 x 8.268 in. (125 x 50 x 210mm)
-Weight: 2.5 lbs. (1.15 kg)
