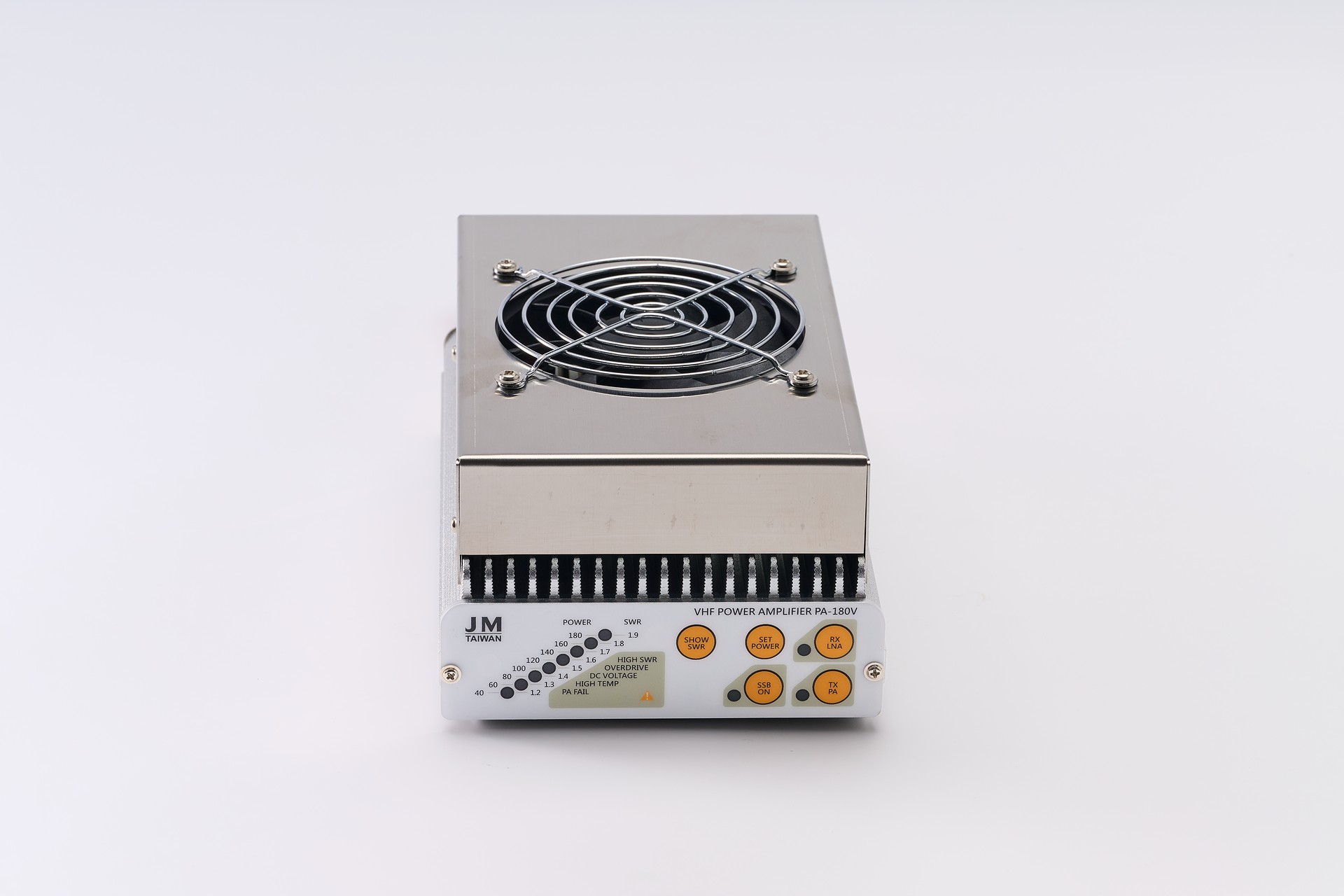

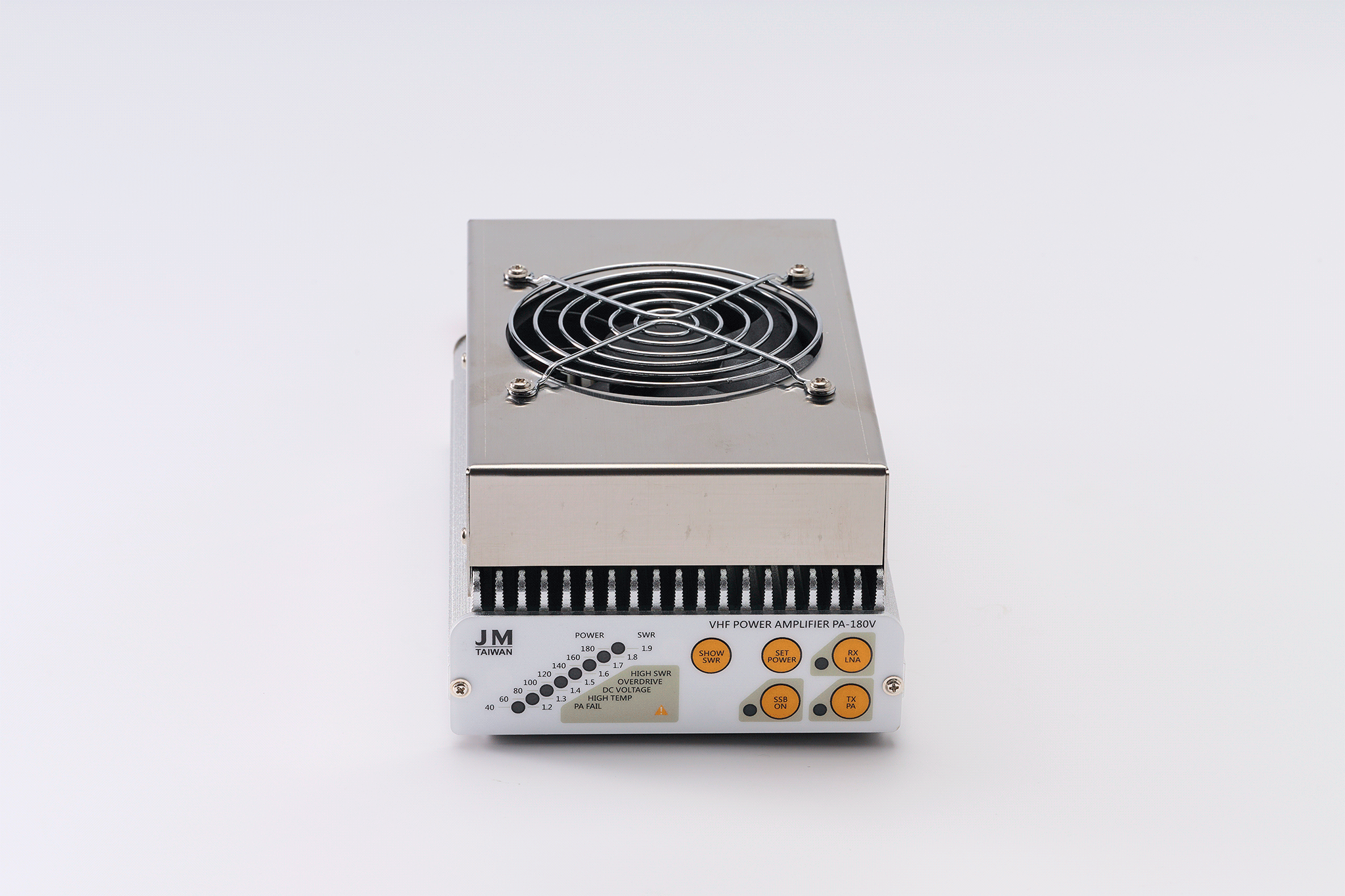

Toptek Communications PA-180V VHF 138-174 MHz 180W Power Amplifiers

Amplifier, VHF, 2m, 138-174 MHz, 180W Out, 1-10W Max. In, FM, SSB, CW, RX Preamp, LED Meter PWR & SWR, AUTO PTT IN, Type-N, 13.8Vdc @ 30A max.,

Toptek Communications PA-180V VHF Power Amplifiers are very stable Solid State linear amplifiers designed for Amateur Radio 2 Meter FM, SSB and CW operations and Commercial communications. Dual MOSFET push-pull PAs provide full RF output* of 180 watts with only 5 watts input, making this amplifier useful for both handheld and compatible mobile VHF transceivers.
Front panel push-buttons select Mode, RX preamp, SWR meter and Power Output Settings of 60, 100, 140, or 180 watts. The front panel multi-color 8 LED string serves to indicate output power settings, output power, SWR and Error.
A unique shroud enables the oversize fan to quietly cool this compact amplifier for safe, long-term operation at full power. Multiple protection circuits, a 21dB Receive Low Noise Amplifier (LNA), RF sense or PTT keying (required for SSB/CW) and a large, quiet thermostatically controlled fan are some of the great features of this Toptek VHF amplifier. True 50 ohm Type-N connectors maintain the highest efficiency to the feedline and the antenna.
*Requires 13.8 VDC @ 30A max. (External power supply not included).

Features of the Toptek PA-180V VHF Amplifier:

• Wideband VHF power amplifier delivers 180 watts RF output typically with only 5 watts of drive power

• Multi-color multi-purpose LEDs display power settings, power output, SWR and error conditions

• Output power (FM) is selectable between four user programmable levels

• Selectable FM or SSB/CW modes with key-up delay and peak power indication

• Multiple protection features: high drive, high SWR, high/low DC voltage, high temperature

• Automatic Control for output power regulation and high SWR protection

• Receiver Low Noise Amplifier (LNA)

• Single oversized low noise thermostatically controlled fan

• RF sense or PTT keying (menu selected)
